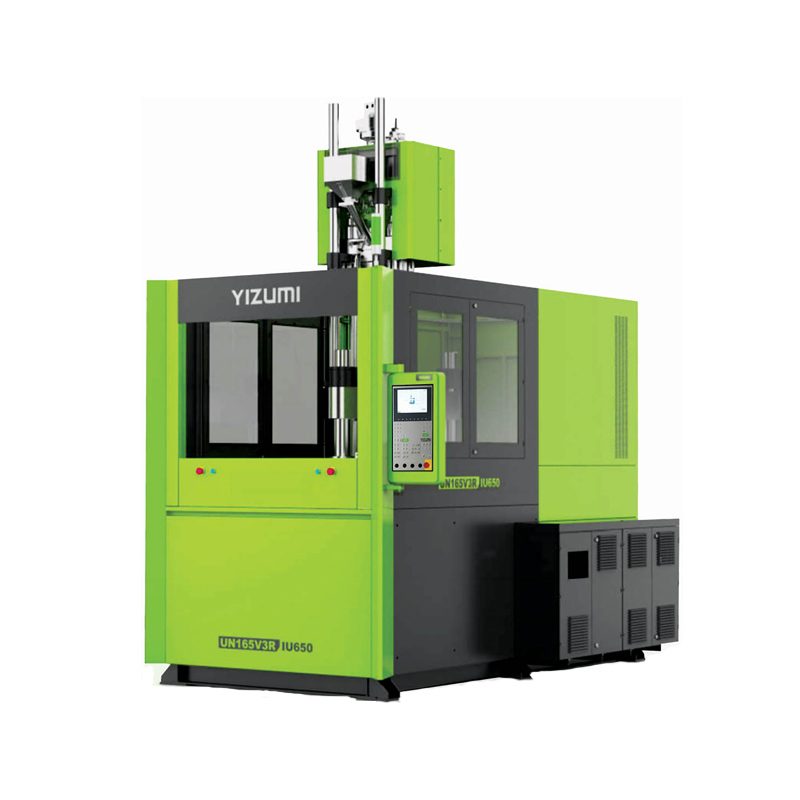

Vertical injection molding machines

  • Excluding secondary procedures and assembly for the final product (product is produced in one stage).
  • Water proof parts production.
  • Exclusion of assembly in production procedure which increases the produced part reliability.
  • Part integrity due to single stage production improves the part harmonic assembly which ends up in higher resistance to shocks and vibration.
  • Enhance parts strength in molding.
  • Flexibility in design and use of multiple material production.



  • After-Sales Service Nation-Wide
  • 24-Hour Response And Quick Service
  • Supplying Original Parts and Spare Parts
  • Specialized Training for Customers
  • Over Two Decades of Industry Experience
  • Over Two Decades of Industry Experience
  • Consulting 0 to 100 Plastic Injection Lines
Product Introduction

Vertical injection molding machines are different than horizontal injection molding machines which are relying on clamping unit to ensure the parts perfect assembly. Proper part positioning require effort, time and high risk, however gravitational force always exist and it will displaces the parts in the mold of horizontal injection molding machine.

Vertical injection molding machines are designed with open clamping unit mechanism and rotary table which make it possible to work with multiple molds and preform pre and post injection processes. Result of using these machines are less hand work, higher performance, higher production rate and lower cost. Another feature of these machines is their smaller foot print, hence it takes smaller area in the factory in comparison with horizontal injection machine.

In other word, using vertical injection molding machines are a solution for production of parts with features such as high durability, vast availability in electrical related industry, medical, military and other similar industries.

In general, Yizumi vertical injection machines are divided into three main groups of YH, YC and YV which can support clamping forces from 12 to 350 tons. YH, YC and YV series have 3 standard types including one way sliding table, two way sliding table and rotary table which is optional based on the producing product.

YV series machines are the common type of vertical injection molding machines which has clamping mechanism with 4 tie bars and vertical injection unit.

YC series vertical clamping unit mechanism is tie bar less to provide more space for operation, injection unit is horizontal in these machines.

YH series vertical injection molding machines have 4 tie bar clamping mechanism and a horizontal injection unit and are mostly used for production of large parts. YH series machines occupy less space in factory. Table below is a short summary of YH, YC and YV series basic information.

Type

Clamping force (Ton) Shot weight (g) Injection speed rate (cc/s) Power (kW)

YV series

12~350 28~961 36~463 6~57
YC series 14~120 36~415 44~157

6~26

YH series 90~500 181~2153 105~422

26~70
